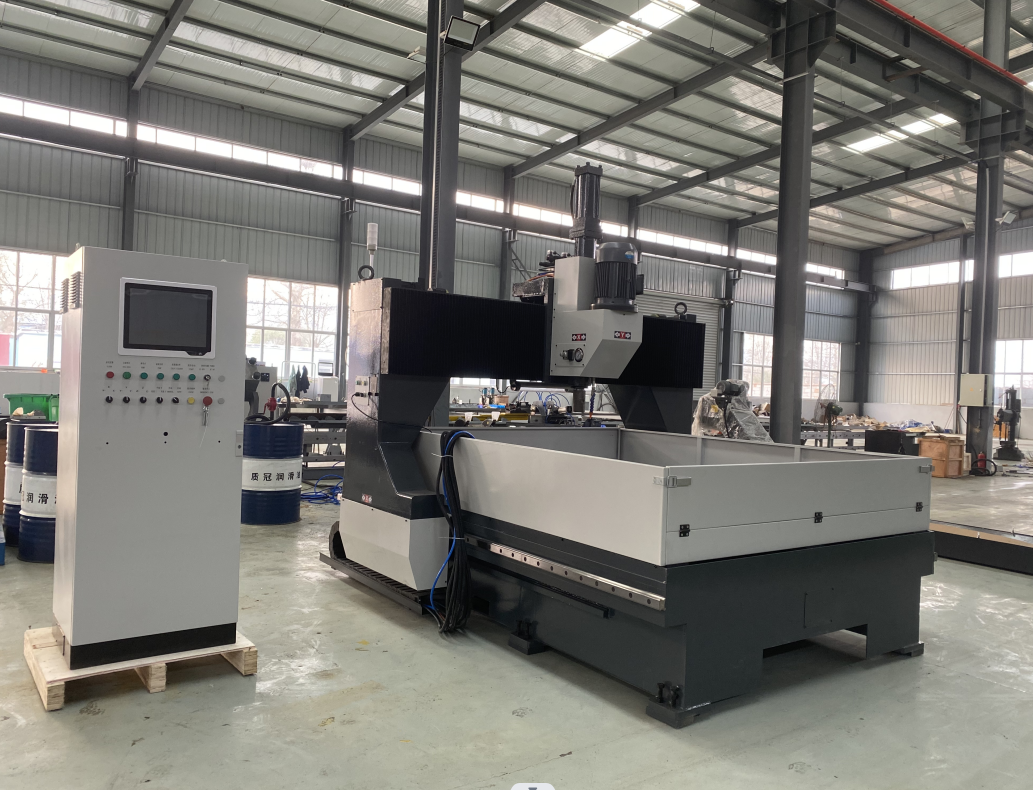

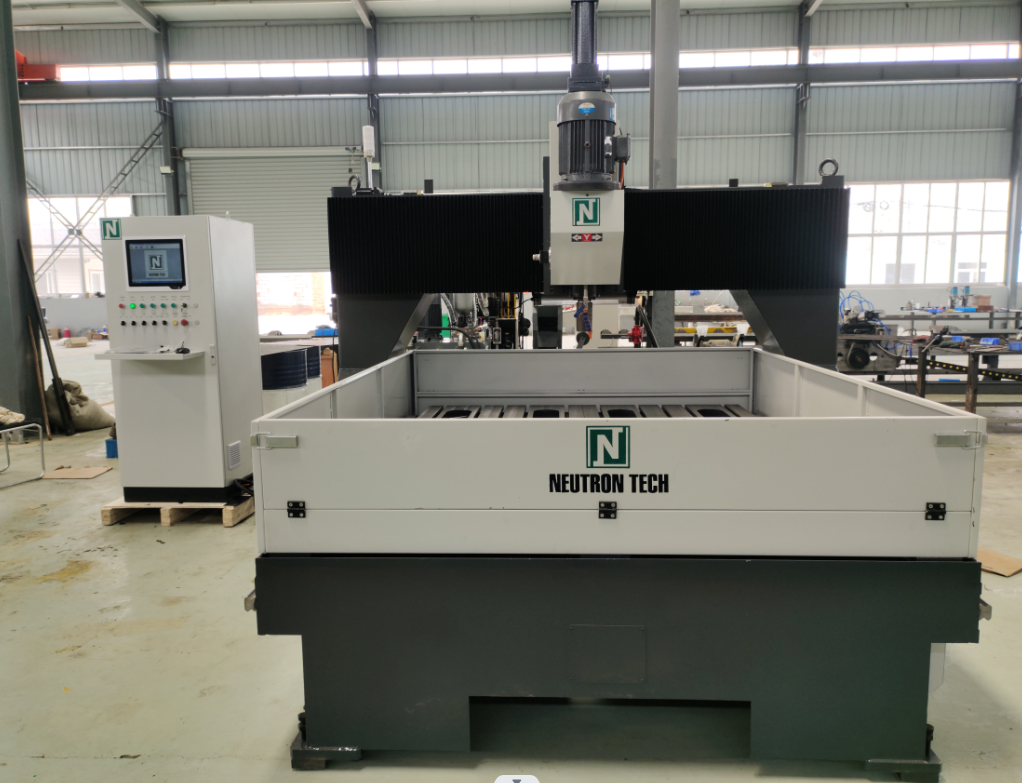

PLD2016S CNC Drilling Machine for Plates
<
>
PLD2016S CNC Drilling Machine for Plates
Product number PLD2016S
Working temperature 0℃ ~ 40℃
Working humidity ≤75%
Power Three phase four wire system
AC Voltage 380V

Product Introduction
PLD2016 has the characters of:

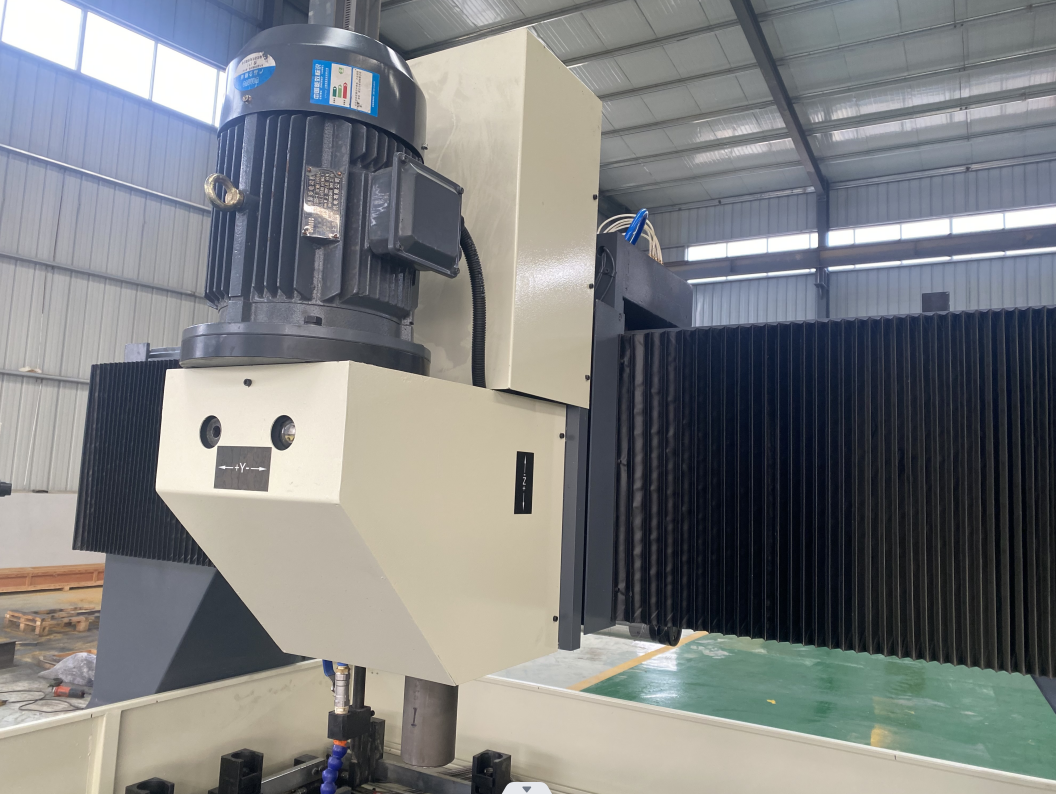

1. The PLD2016 is mainly for drilling job on steel plate. Its Max rotation speed of Drilling Spindle is up to 560 rpm. It can be equipped with Twist drill.

2. The Machine PLD2016 uses hydraulic cylinder as drilling spindle's feeding system.
3.

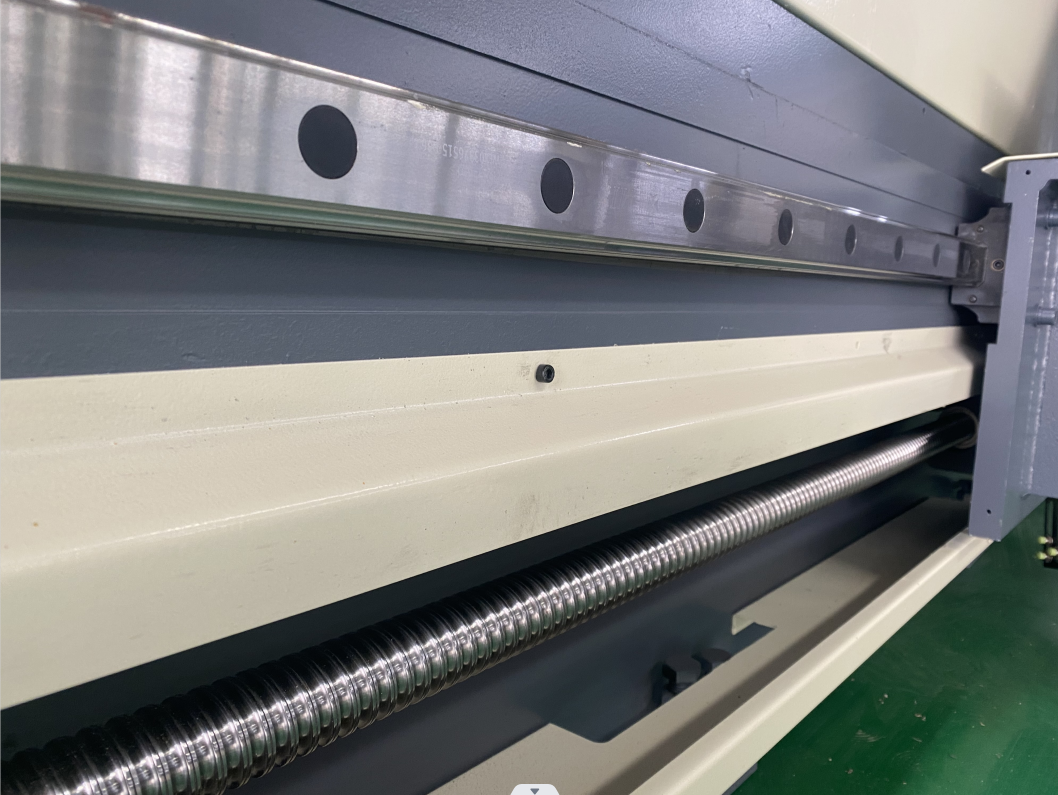

The grantry driven by ballscrew via guidway.
4.
The machine equipped with Auto-chip cleaner system.

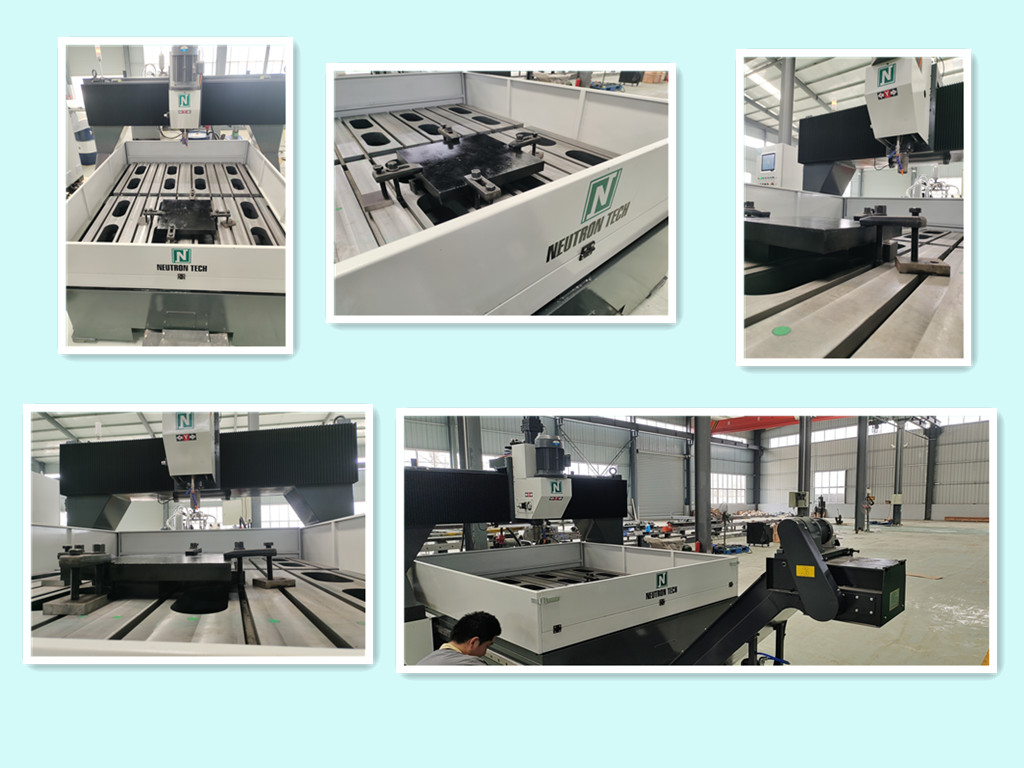

5. There are totally 12 sets of Hydraulic Clamps for clamping the steel plates on the worktable. And the hydraulic unit for the clamps is very reliable.
6. The hydraulic station is placed inside the machine bed to improve working environment of the hydraulic station, reduce floor space, and the machine is more compact.
7.
PLC, inverter, servo system and low-voltage electrical items all use Siemens or Mitsubishi brand to ensure reliable and stable operation of the system.
8.
Using fanless and fully closed industrial computer to run software, effectively isolate the dust, greatly improve the life of the computer.
9.
The computer software is written in VB net language. It has good compatibility with Windows system, stable operation and beautiful interface. It has functions such as graphic zooming and coordinate display, and readable to DXF, DSTV and other format files. The computer software can transfer processing program of four zones at the same time. After one program transfer, the system can automatically process the workpieces in each zone, increase efficiency effectively.

Product parameter

ItemDetailsValue
Size of work pieceThicknessMax.100mm

Width ×length2000mm×1600mm one piece


1600mm×1000mm two pieces


1000mm×800mm four pieces
Drilling SpindleQuick change chuckMorse Taper 3#,4#

Diameter of Drilling headΦ12mm-Φ50mm

Variable speed modeStepless speed adjustment

Rotation speed120-560r/min

Max. feeding stoke180mm

FeedingServo Motor Feeding Type
ClampingClamping thickness15-80mm

Number of clamps12 pieces

Clamping force7.5KN

Clamping startFoot switch
Cooling waterTypeForced circulation
HydraulicClamping6MPa(60kgf/cm2)

Volume100L
Air forceAir supply0.4MPa(4kgf/cm2)
Servo MotorAxis5.5KW

Hydraulic pump2.2KW

Cooling pump0.25KW

Motor of chip removal device0.75KW

Servo motor of X axis2KW

Servo motor of Y axis1KW
SizeL×W×HAbout 5183×2605×2474mm
WeightMachine5600kg

Chip removal system800kg
StrokeX axis2000mm

Y axis1600mm
Max speed10000mm/min

Technical Specification of PLD2016

Working temperature: 0℃ ~ 40℃

Working humidity: ≤75%

Power: Three phase four wire system

AC Voltage: 380V

Fluctuation of voltage: ±10%

Frequency: 50 Hz±1HZ
